Control Valves

Designed for modulating flow and pressure in process systems, control valves provide precise regulation and automation of fluid dynamics.

Materials: Cast carbon steel, forged carbon steel, stainless steel, cast iron, and alloy steel.
Sizes and Classes: Available in sizes from ½'' to 8'' and pressure classes of 150#, 300# and 600#.

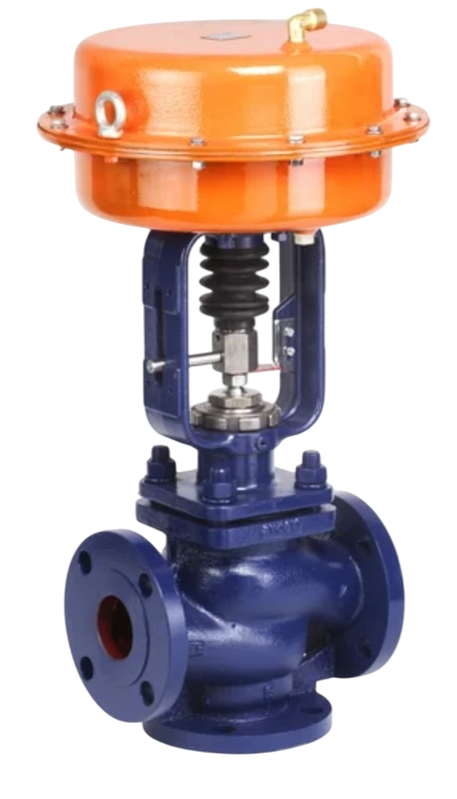

Single Seated / Double Seated

These control valves are used for accurate flow control in process industries, including chemical processing, pharmaceuticals, and food and beverage production. They ensure stable and efficient operation.

Type	Single / Double Seated Control Valve
Size	From 1/2" to 8" for single seated & 1" to 12" for Double Seated
Pressure Rating	Class 150, 300, 600
Design Pressure	Up to 900 PSIG
Design temperature	Up to 100 Dig. C to 850 Dig. C
Body Material	C. S., SS 304, SS 316, Alloy 20, Monnel
Trim Materials	AISI 410 / 304 / 316
End Connection	Screwed upto 2" Socket Weld End up to 3" Flanged confirming to ANSI, DIN,IS,BS
Actuator Type	Spring Diaphragm Cylinder
Characteristics	Quick-Opening. Equal Percentage & Linear
Bellows Seal	Stainless Steel & PTFE
Packing	Teflon, Teflon Asbestos Graphited asbestos

Diaphragm Operated Butterfly Valve

Used for on/off and throttling service, these valves are common in water treatment, HVAC, and food processing industries. They offer precise control and easy operation. Robustly constructed, our Diaphragm operated Butterfly valves are available at the most competitive prices.

Type	Diaphragm Operated Butterfly Valve
Size	From 2" to 36"
Design Pressure	Up to 600 lbs
Design temperature	Up to 650 Dig. C
Body Material	C. I.,C. S., SS 304, SS 316, Alloy 20, Monnel
Trim Materials	AISI 410 / 304 / 316
End Connection	Wafer Type Design
Actuator Type	Spring Diaphragm Cylinder
